EI90
The upper-level EI system where insulation is as important as integrity.
| Single and double doors (Latched only) | |
|---|---|
| Fire Rating | E190, 90 Minutes Integrity and Insulation (90/90) |
| Fire Standard | BS EN 1634-1 |
| Locks & Fittings |
Rebated and latched only Fittings to match the system Weld on hinges Choose from a range of stainless-steel handles Face mounted overhead closures |
| Dropseal | Length to suit the door |
| Door Seals | Double seal |
| Finish | Mild steel powder coated |
| Dimensions |

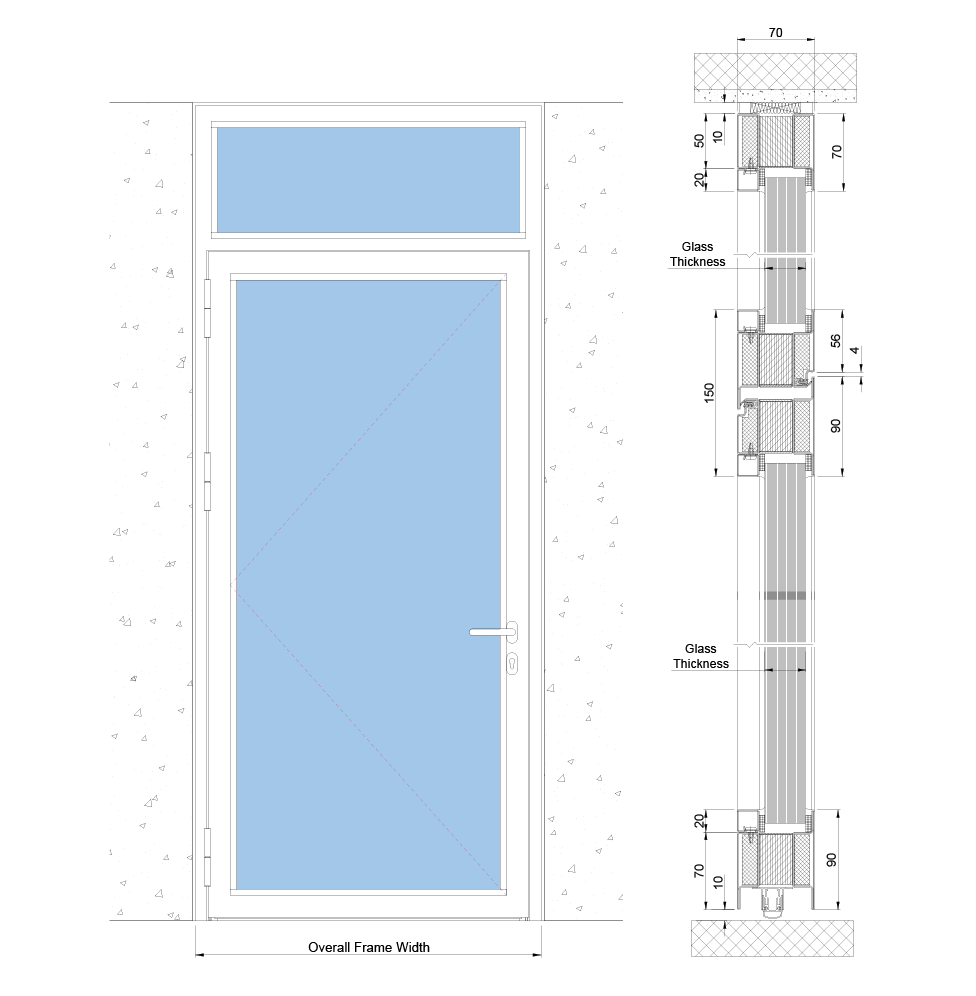

OAG are committed to ongoing testing and the dimensions listed below should be treated as guidance only. Door configurations such as latched or un-latched have a bearing on overall sizes, please contact us to discuss individual project requirements. Singe door up to 1,510mm wide and up to 2,910mm high Double door up to 1,220mm (per leaf) and up to 2,520mm high |
| Side panels (either side of the door configuration) - Please contact us for further information | |
|---|---|
| Fire Rating | EI90, 90 Minutes Integrity and Insulation (90/90) |
| Finish | Mild steel powder coated |
| Dimensions |
Side panel up to 1,360mm wide and up to 2,440mm high Standalone butt jointed as per Certifire approval Please contact us should you need to exceed these dimensions |
