EI60
The mid-level EI system where insulation is as important as integrity.
| Single and double doors (Available in ‘Latched or Un-latched configurations) | |
|---|---|
| Fire Rating | E160, 60 Minutes Integrity and Insulation (60/60) |
| Fire Standard | BS EN 1634-1 |
| Locks & Fittings |
Fittings to match the system Weld on hinges Choose from a range of stainless-steel handles Face mounted overhead closures Dropseal - length to suit the door Door seals - double seal |
| Smoke Certification |
Standard: EN 1634-3:2005 / BS 476-31.1:1983 All doors (both rebated and non-rebated) are tested and certified for ambient smoke (noted as E30Sa/E30S for example) All rebated doors are also tested for medium heat (noted as E30Sm for example) |
| Finish | Mild steel powder coated |
| Dimensions |

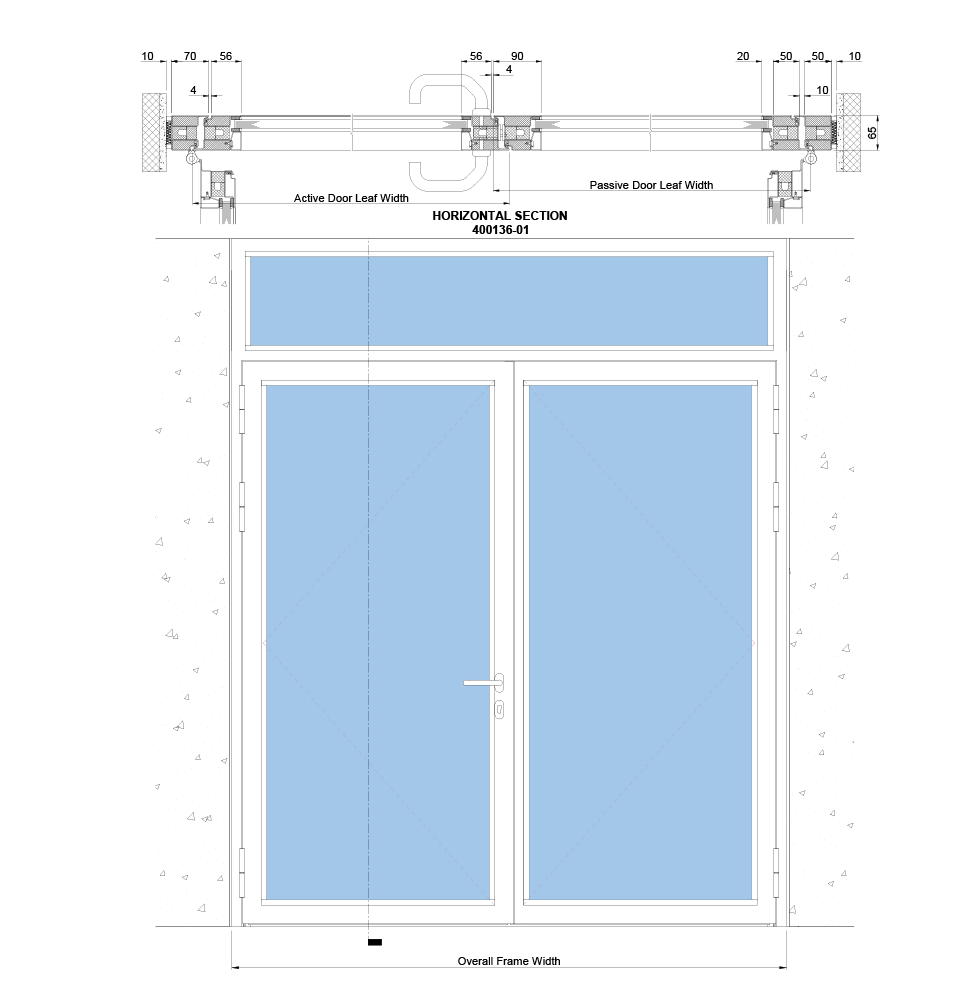

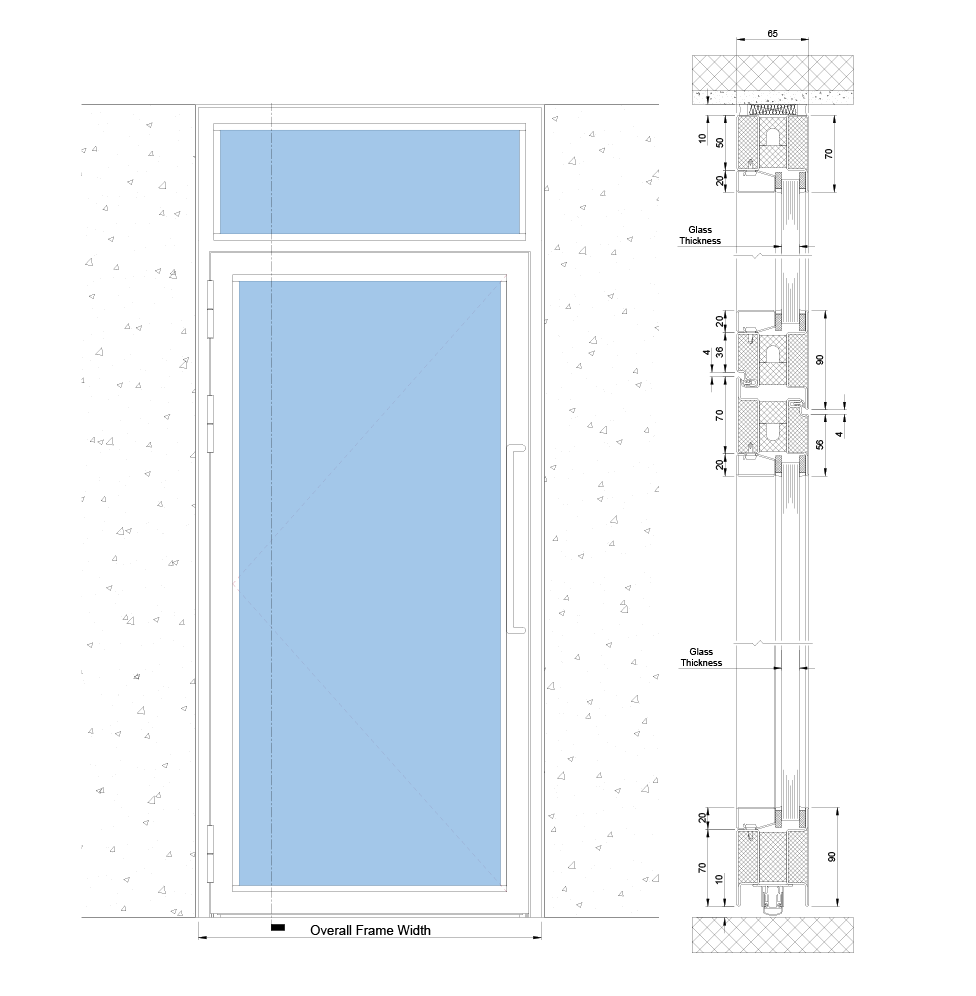

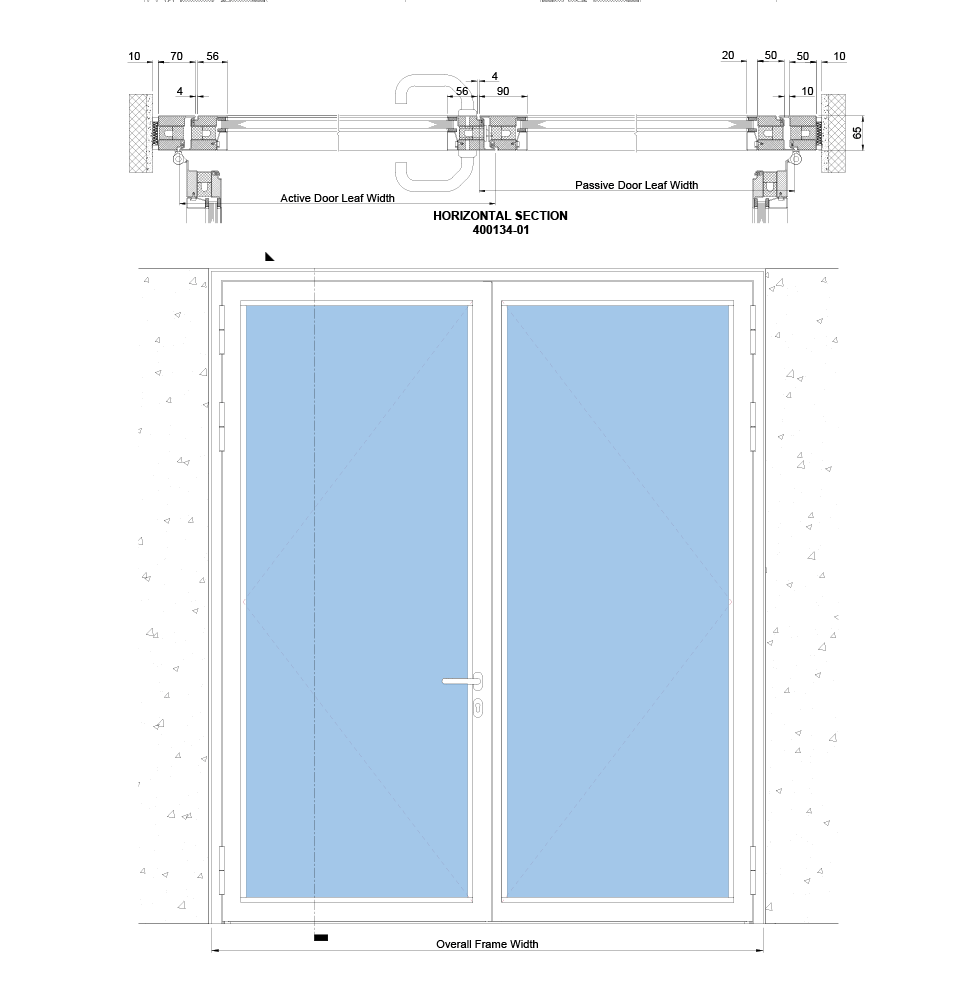

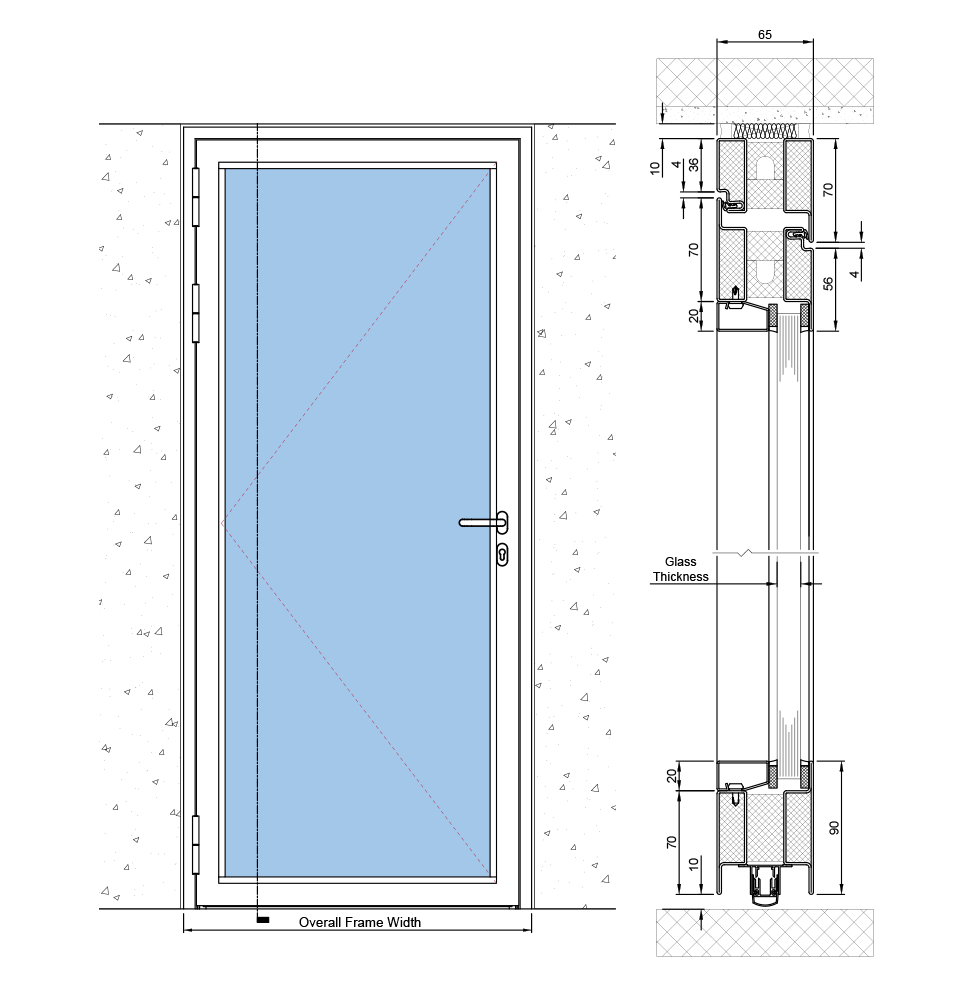

OAG are committed to ongoing testing and the dimensions listed below should be treated as guidance only. Door configurations such as latched or un-latched have a bearing on overall sizes, please contact us to discuss individual project requirements. Rebated: Single door up to 1,397mm wide and 2,582mm high Double door up to 1,224mm wide (per leaf) and 2,564mm high Non Rebated: Single door up to 1,180mm wide and 2,450mm high Double door up to 1,180mm wide and 2,450mm high |
| Side panels (Unlimited ‘side panel’ modules can be incorporated either side of the door configuration) | |
|---|---|
| Fire Rating | EI60, 60 Minutes Integrity and Insulation (60/60) |
| Finish | Mild steel powder coated |
| Dimensions |
Side panel dimensions will be typically up to 1,500mm wide and 3,000mm high. Please contact us for sizes in excess of these dimensions and for confirmation on the maximum over panel dimensions. Standalone butt jointed screens in line with Certifire approval. |
