135 Bishopsgate

Installation of stainless-steel portal on the East elevation and a number of structural glazing & cladding elements to the new retail & office area

Project Story

Originally built in 1988, the building was wholly occupied by RBS until British Land commenced redevelopment in June 2017.  The redevelopment included refurbishing the interior, improving connectivity with the street, installing terraces & green spaces and expanding the retail provision.

Just a short walk from Liverpool Street Station and accessible from both Bishopsgate and Exchange Square, the building provides more than 280,000 sqft of creative workspaces which will be home to businesses including McCann Worldgroup and Mimecast.  It also became home to Italian marketplace Eataly’s first UK location in April 2021 – the largest stand-alone food hall in the country.

We were engaged early in the design process, working alongside the architects and main contractor to provide samples of glass and ironmongery along with a scaled visual mock-up of the ‘Feature Portal Cladding’ for the East elevation.

As well as the eye catching blackened stainless-steel portal with a debossed pattern on the East elevation, we designed, supplied and installed a number of structural glazing and cladding elements to form the new retail & office area.

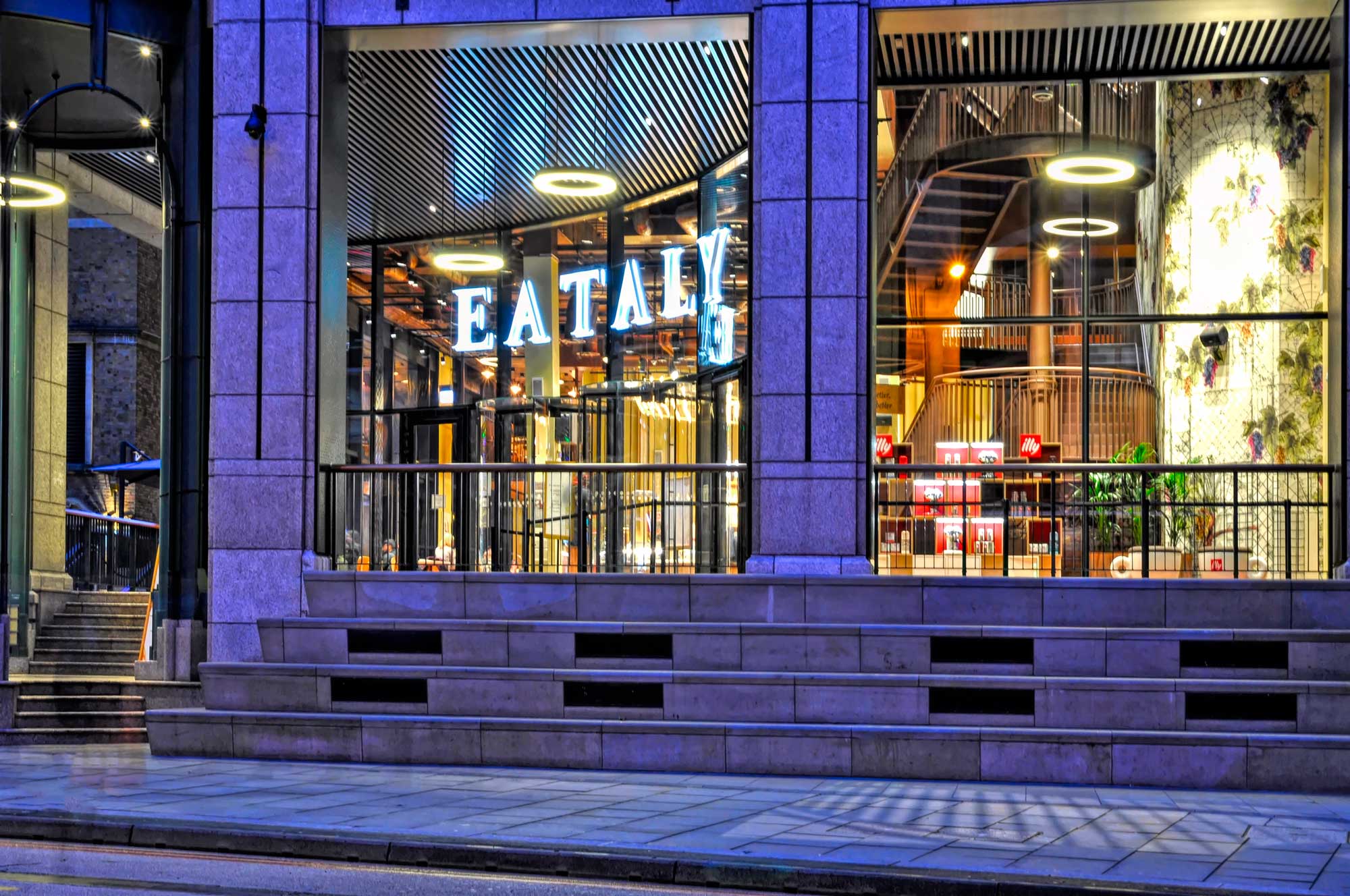

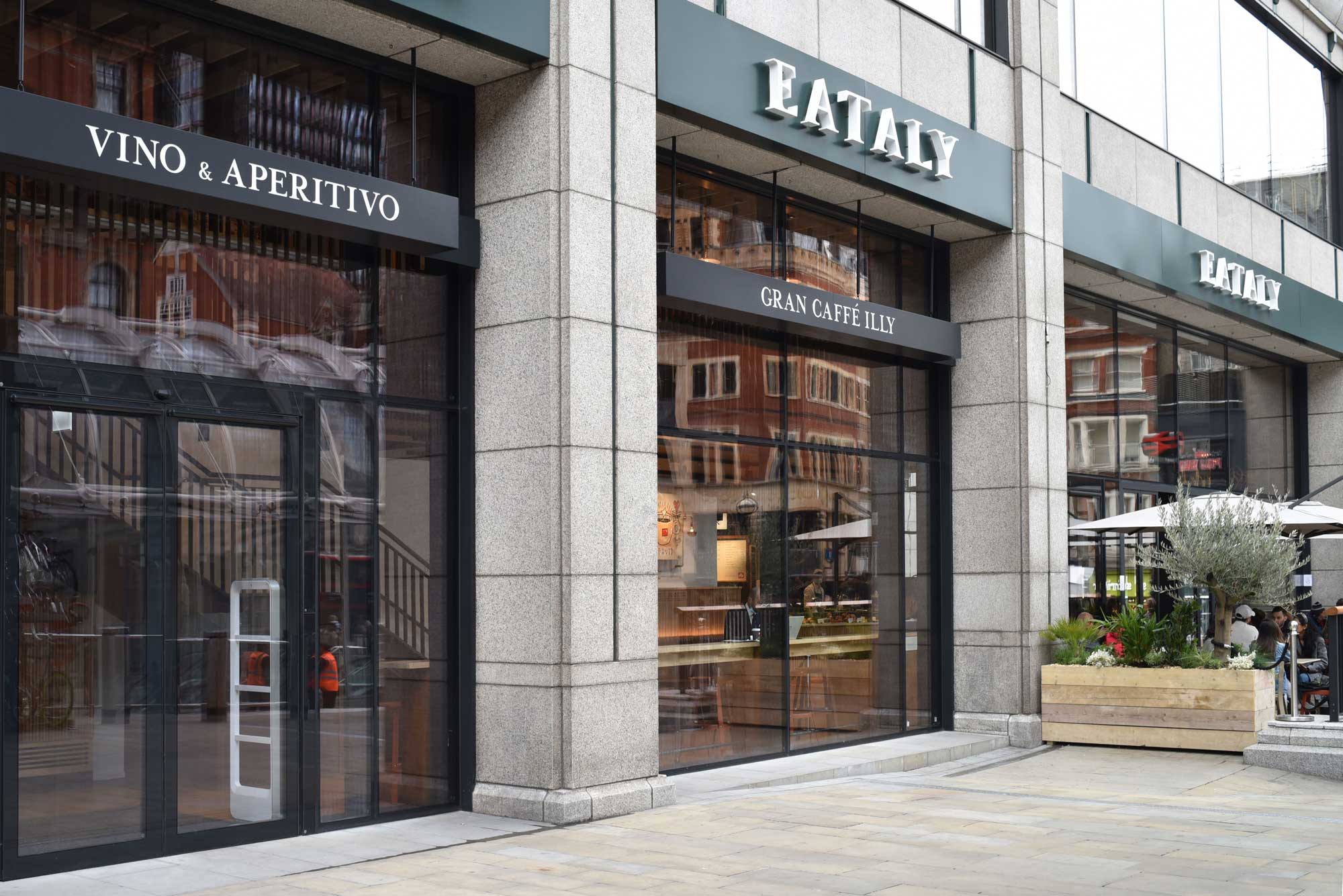

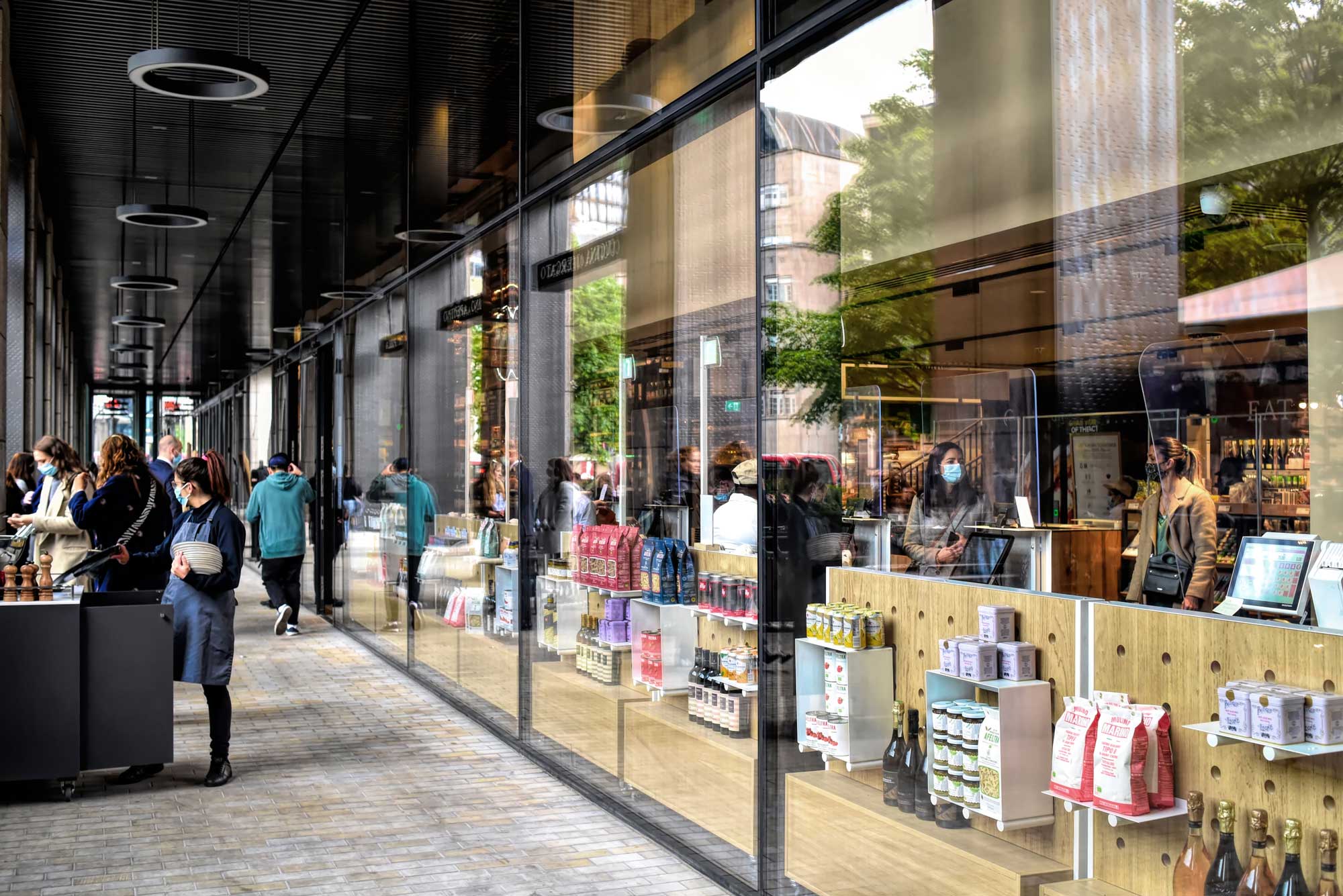

This included a bespoke steel, flush glazed system, working with a specialist company for the façades to the Ground & 1st  floor, East & South elevations, and to the first and second floors on the Great Eastern Walkway; plus various entrances, doors, screens and balustrades as shown below:

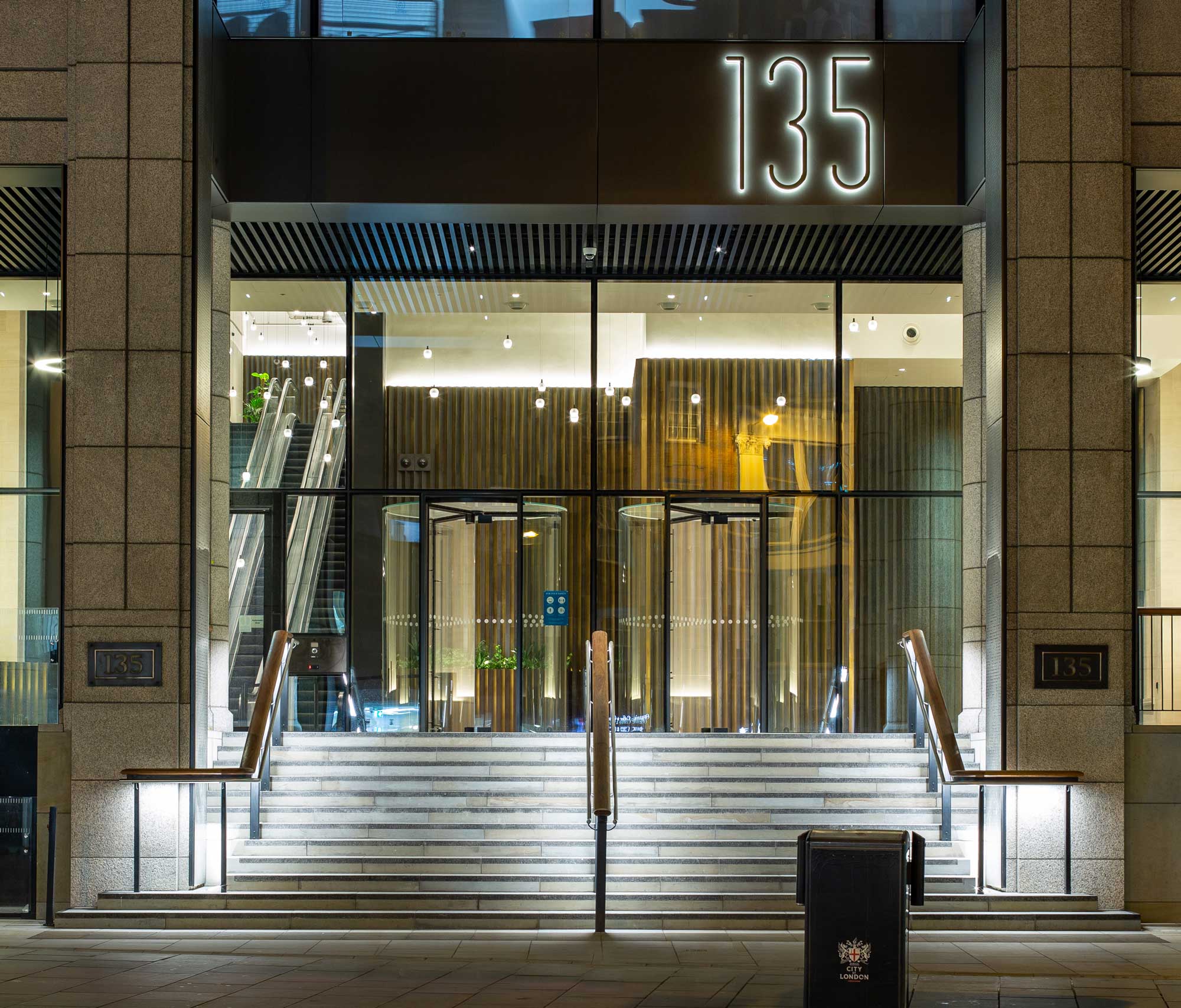

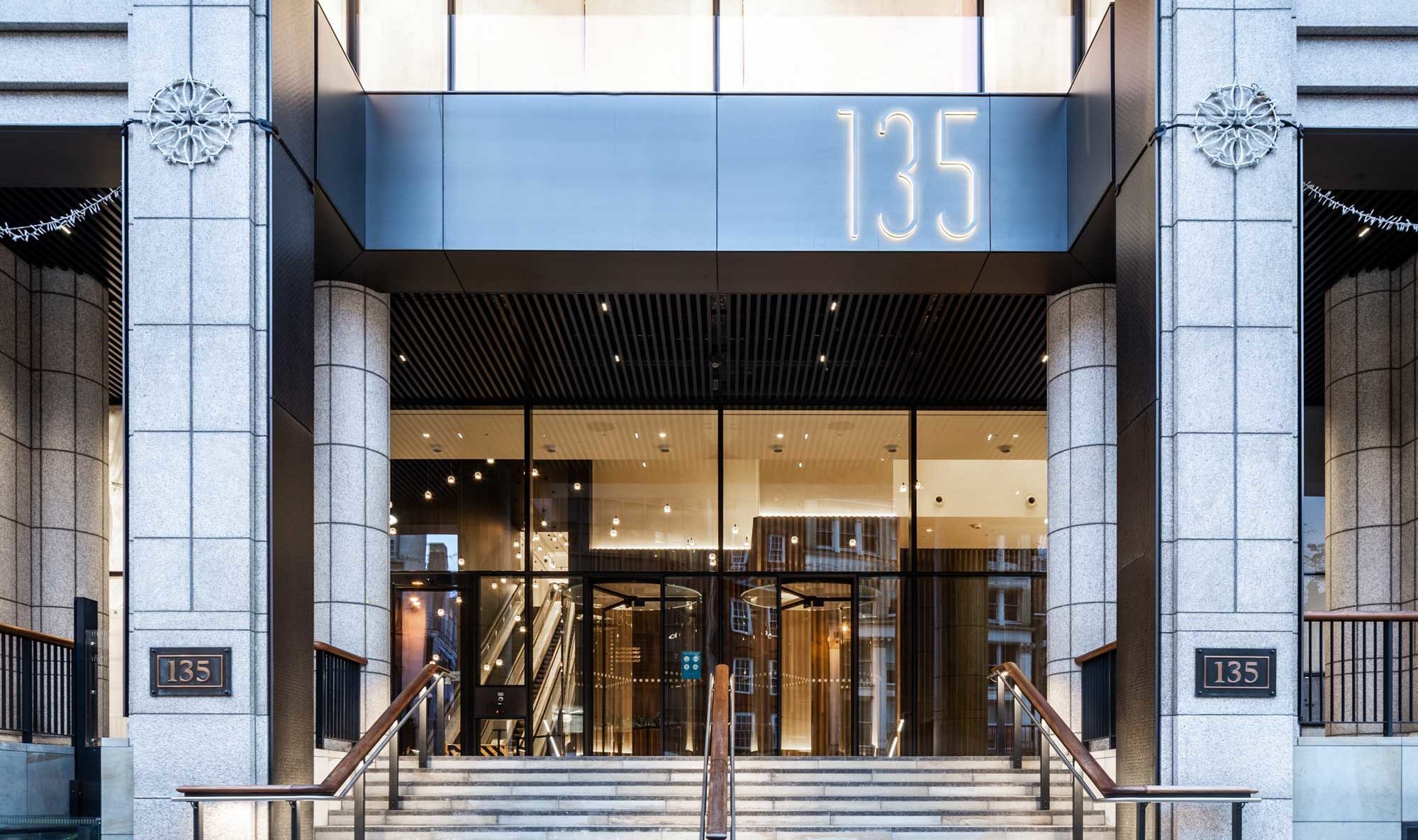

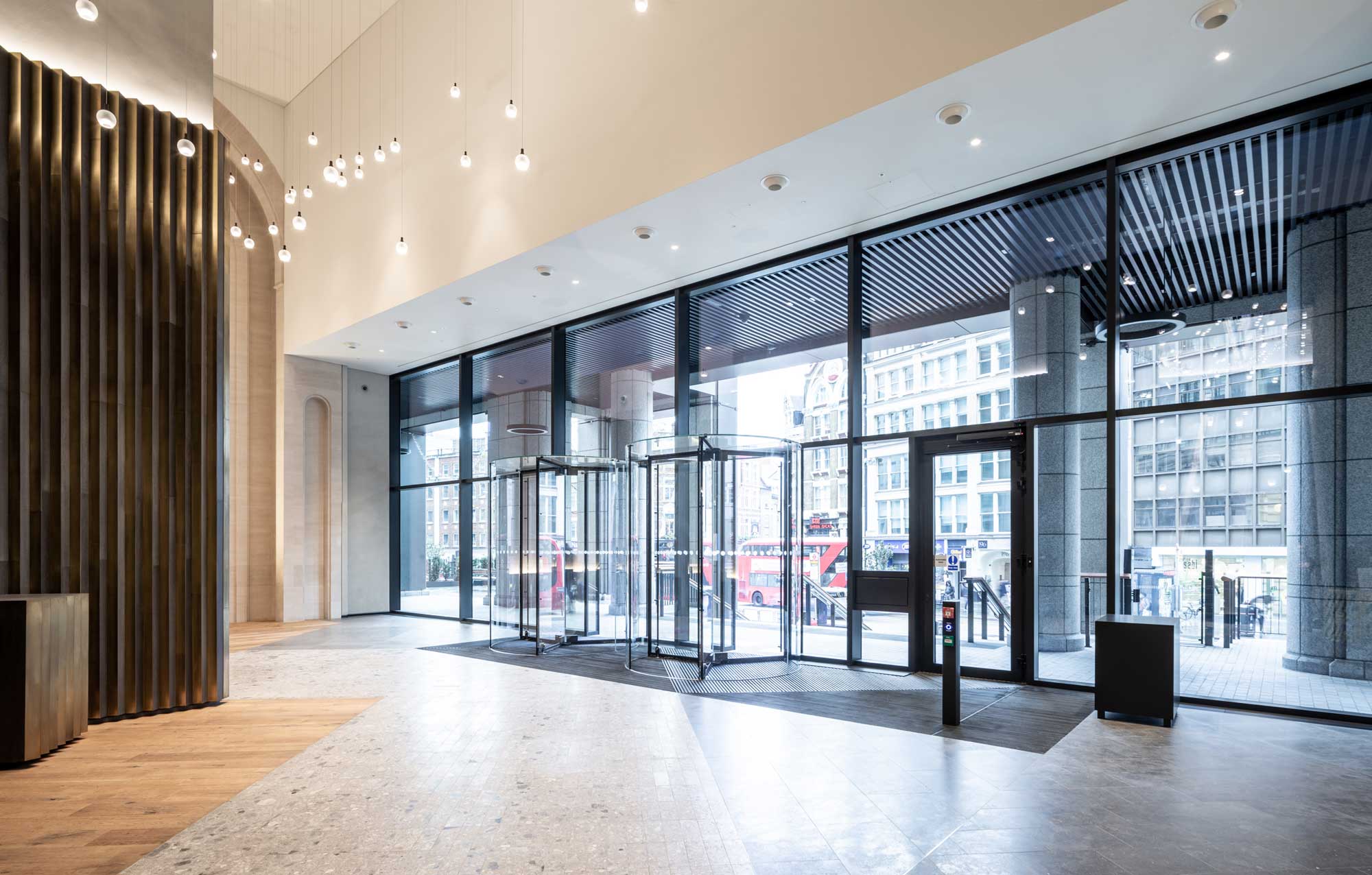

  • Two office main entrances and the retail main entrance complete with revolving doors & pass doors
  • Two draught lobbies to retail areas as well as multiple automated and bifold doors to retail areas

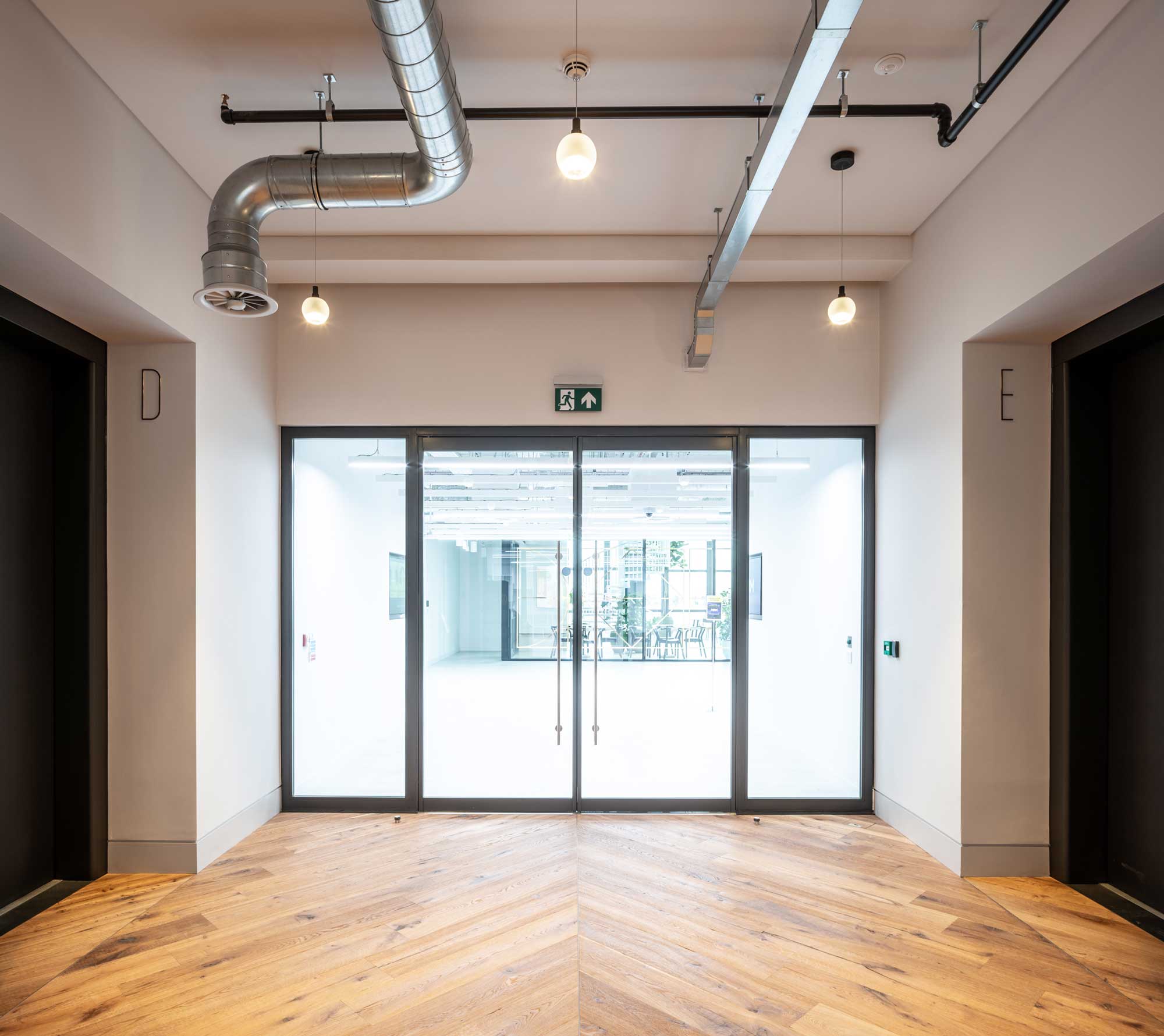

  • OAG Fortiglaze fire rated screens across 12 floors, within the lift lobbies and on the 1st floor reception
  • Eurobond firemaster insulated wall and ceiling panels of various sizes with 120 minutes fire integrity and insulation
  • Fire rated windows and doors with 30 minutes fire integrity
  • The 1st floor balustrade
  • Two 5m terrace bifold door screens on level 8

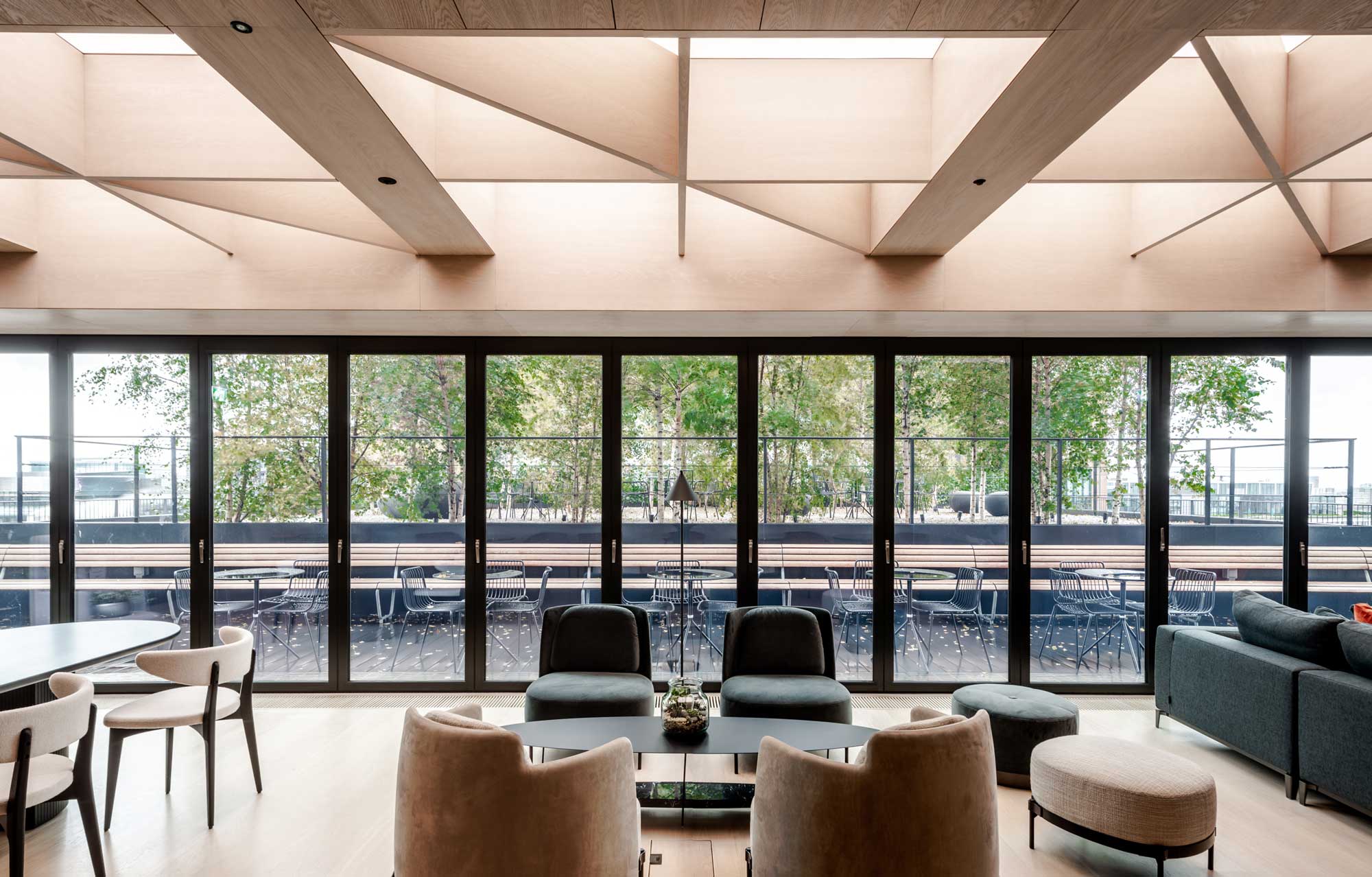

  • One 13m terrace bifold door screen on level 10
  • One 5m terrace screen on level 7
  • Three plant room screens on levels 8 and 10
  • Bespoke louvered screens on the ground and 1st Floor
  • Bespoke louvered service road gates with cyclist entrance door
  • Control room within the service road.
Watch our video to see some of our work at 135 Bishopsgate:

Project Summary

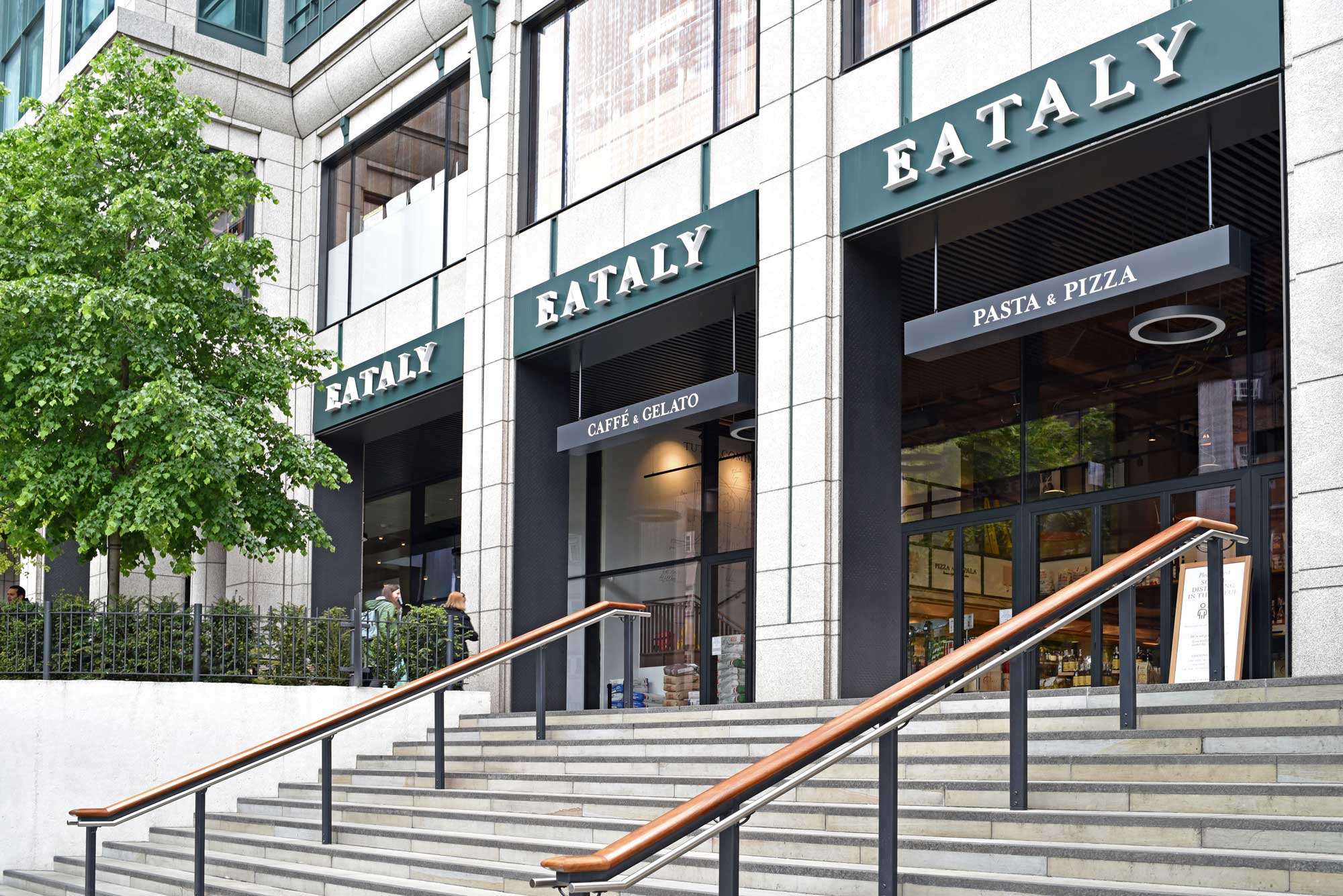

Eataly OAG Architectural Glass Facades 01
135 Bishopsgate OAG Architectural Glass Facades 02

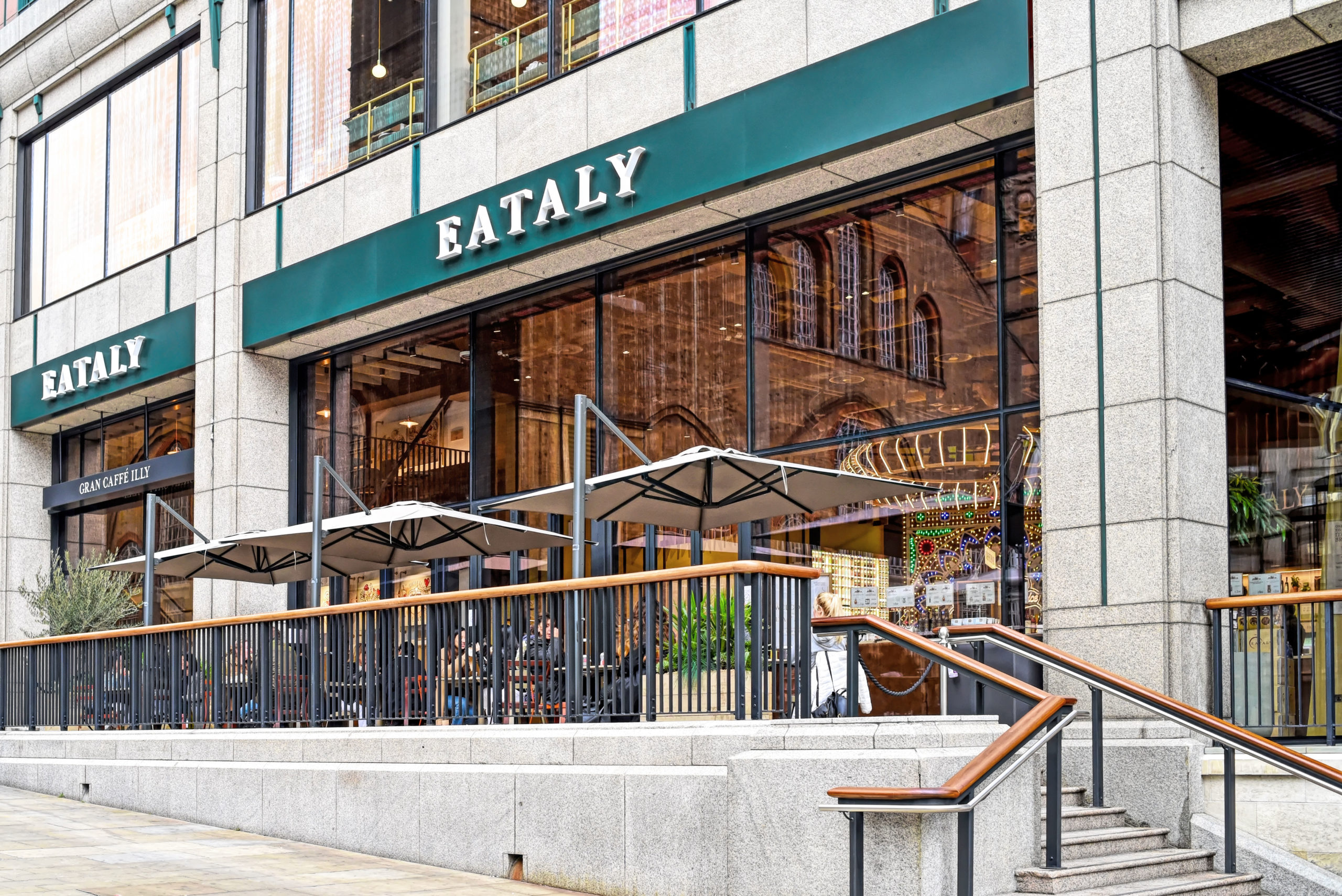

Eataly OAG Architectural Glass Facades 03
135 Bishopsgate OAG Architectural Fire and Smoke 11
135 Bishopsgate OAG Architectural Glass Entrances 04
135 Bishopsgate OAG Architectural Glass Sliding Doors 05

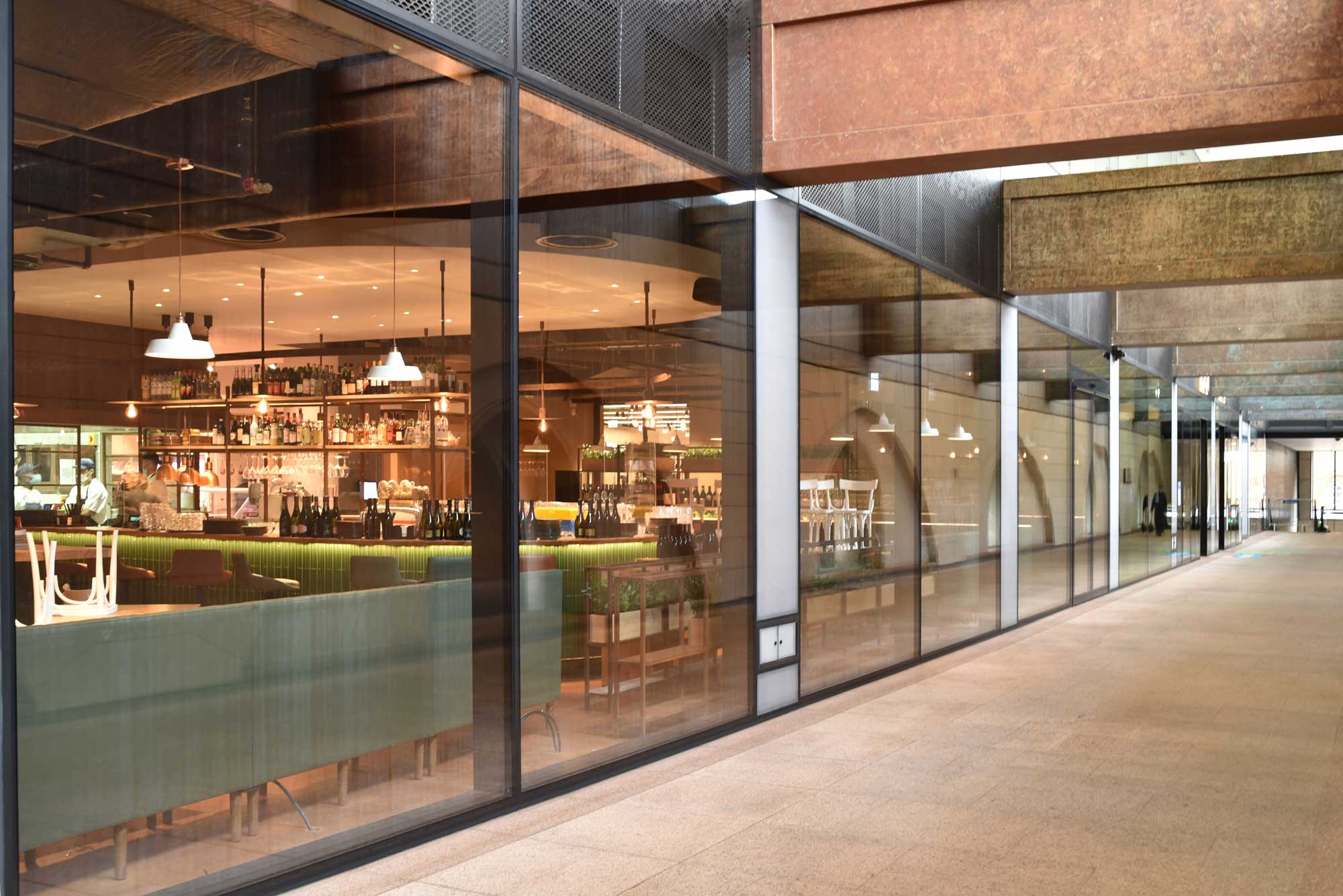

Eataly OAG 06

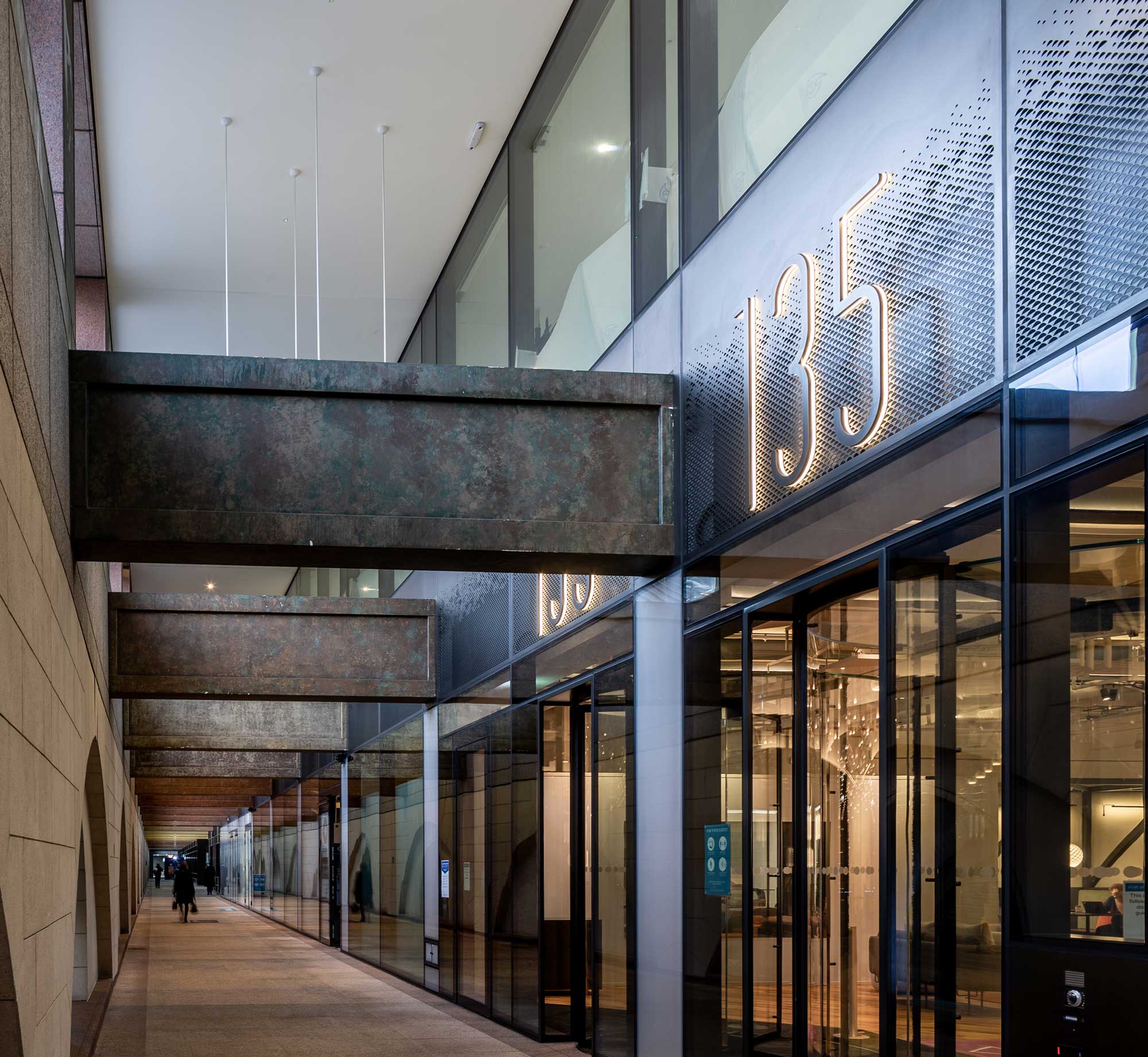

135 Bishopsgate OAG 07

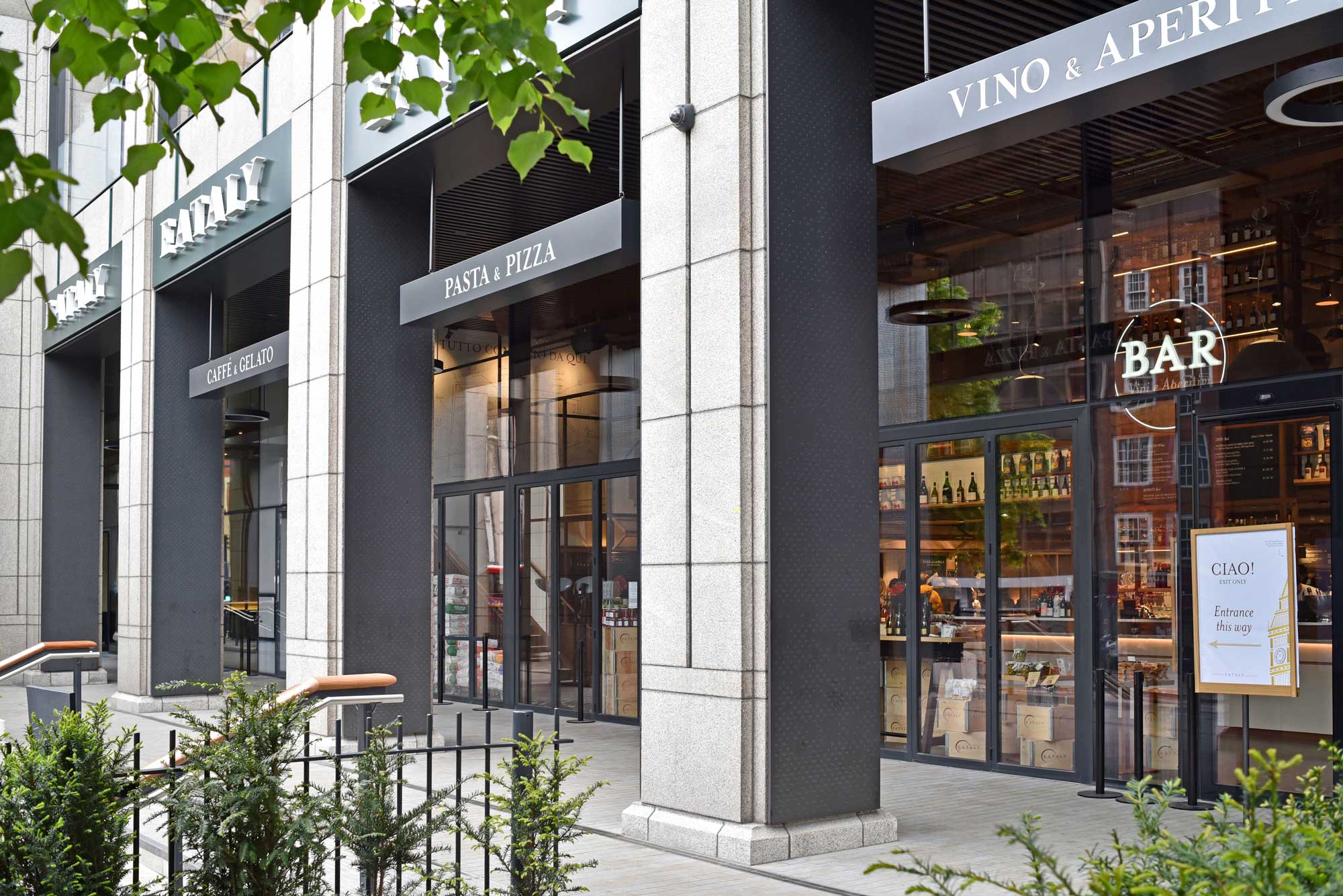

Eataly OAG 08
Eataly OAG 09
135 Bishopsgate OAG 10

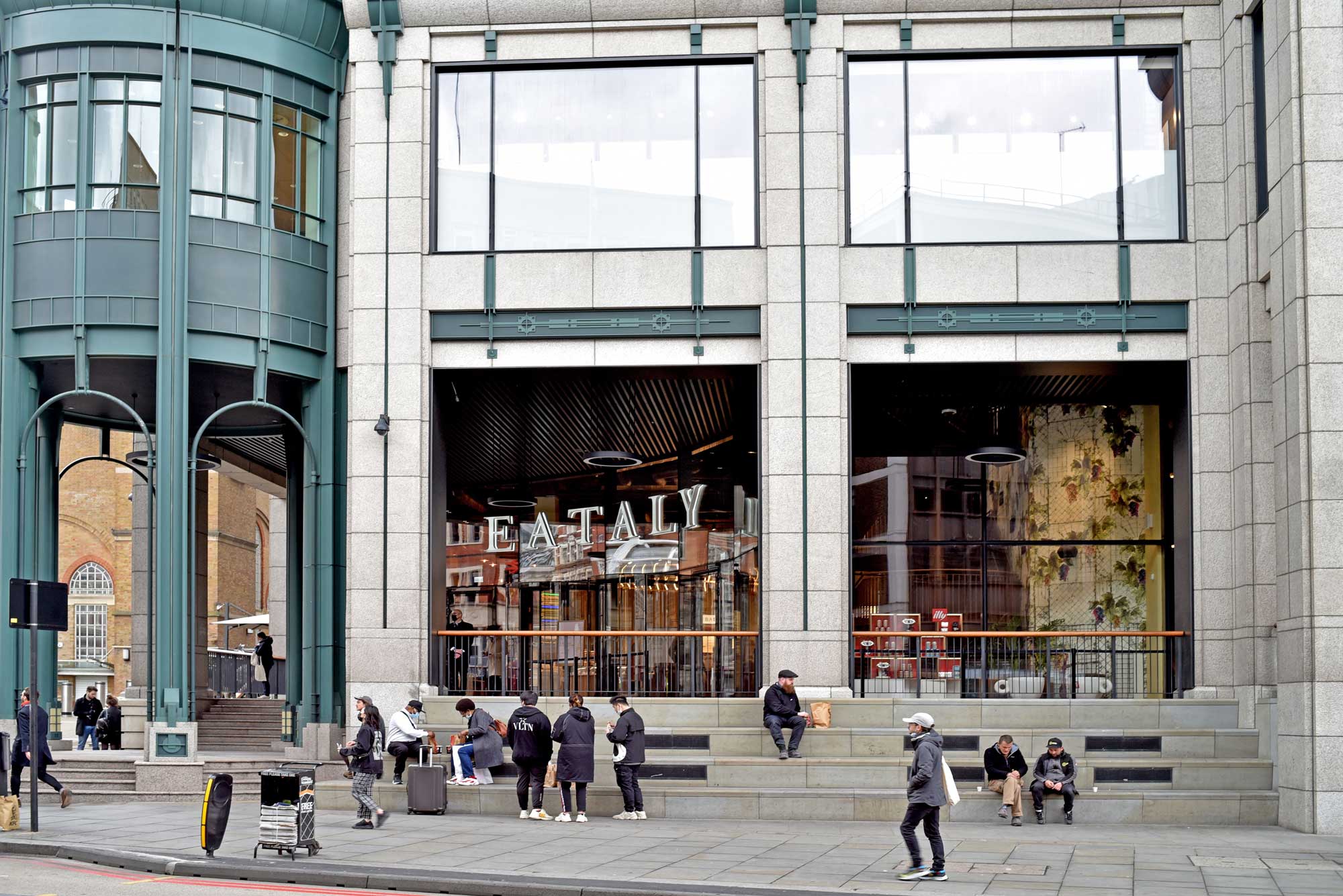

Eataly OAG 12

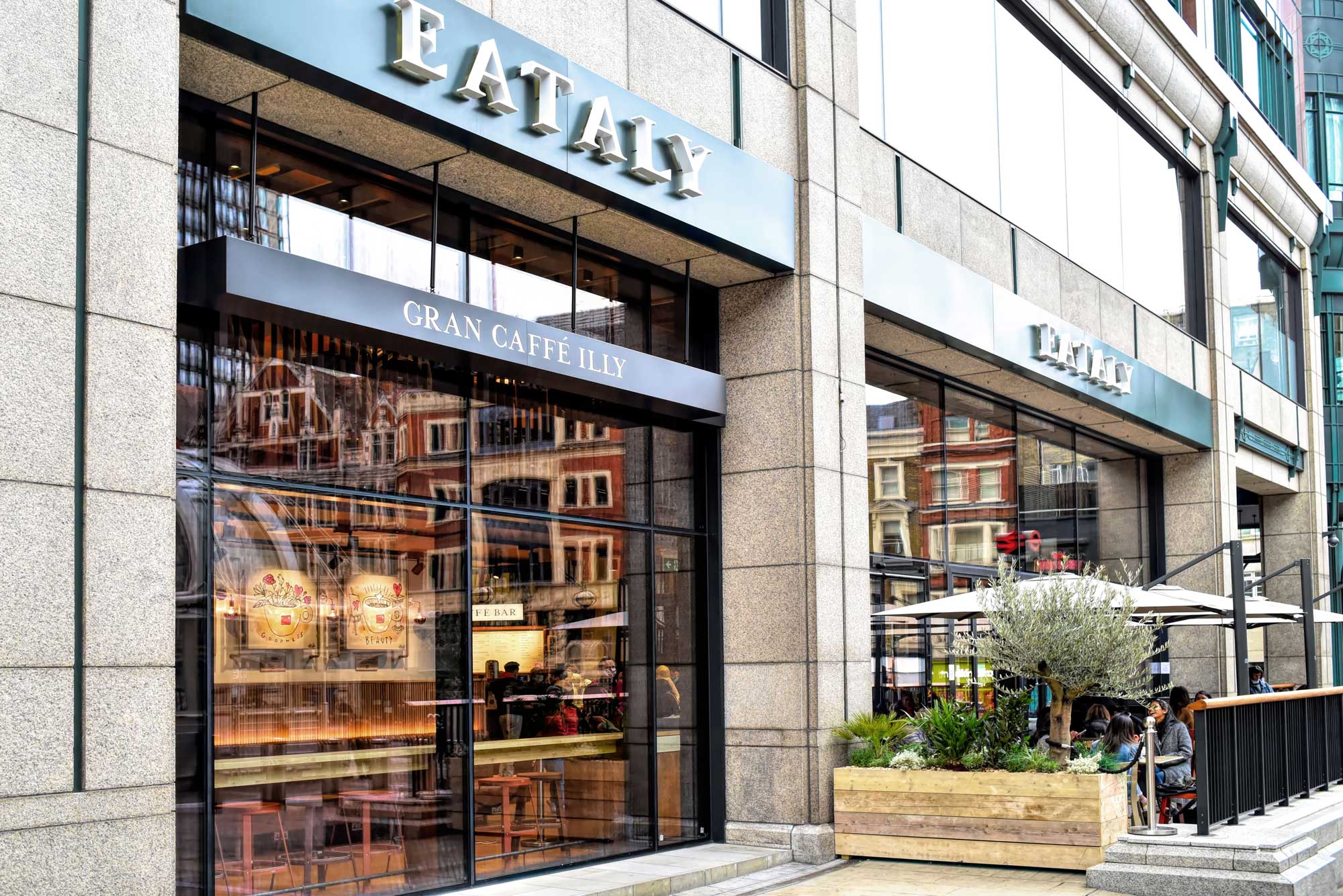

Eataly OAG Architectural Glass Shop Fronts 14

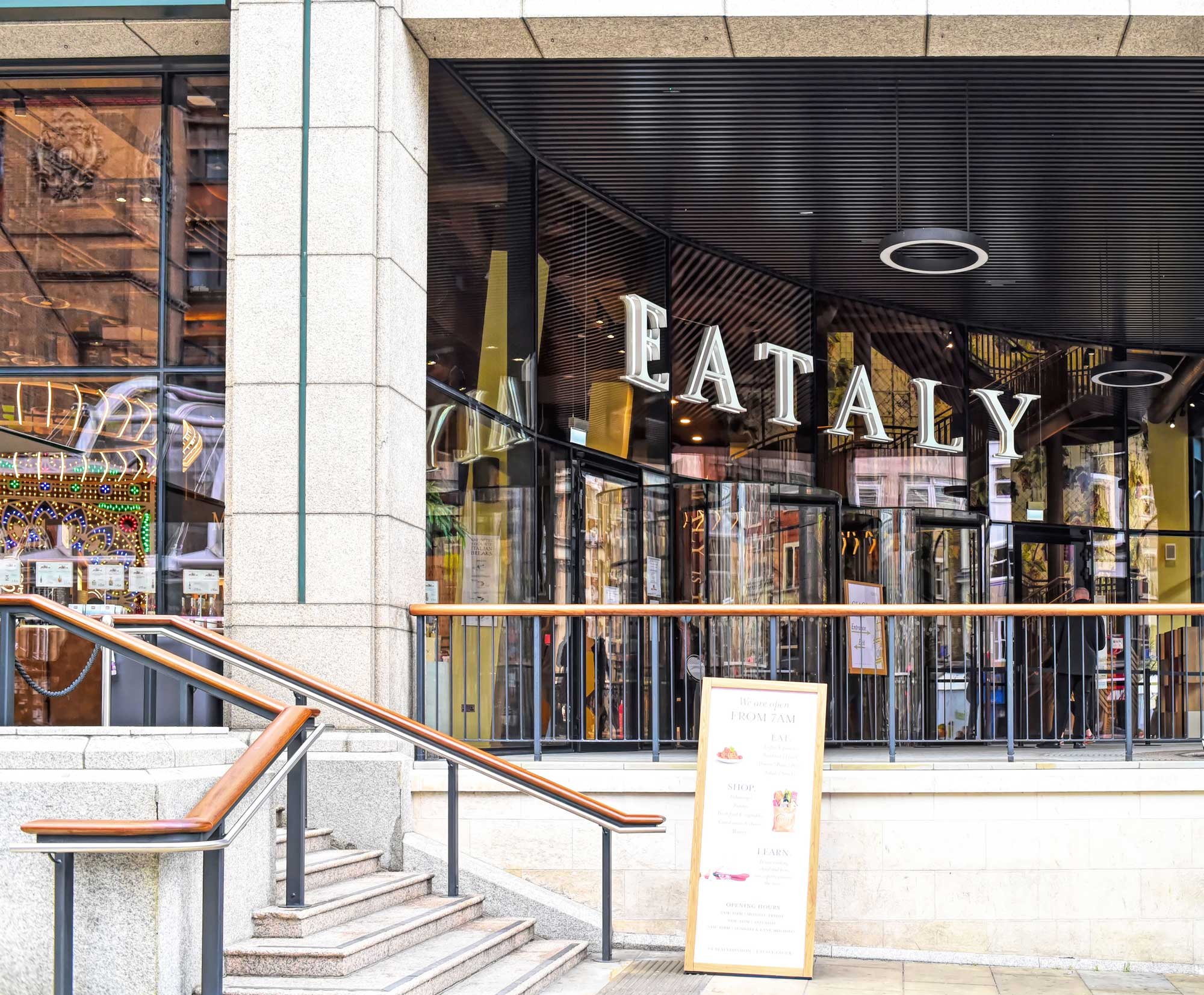

Eataly OAG 13
Eataly OAG 16
Eataly OAG 17

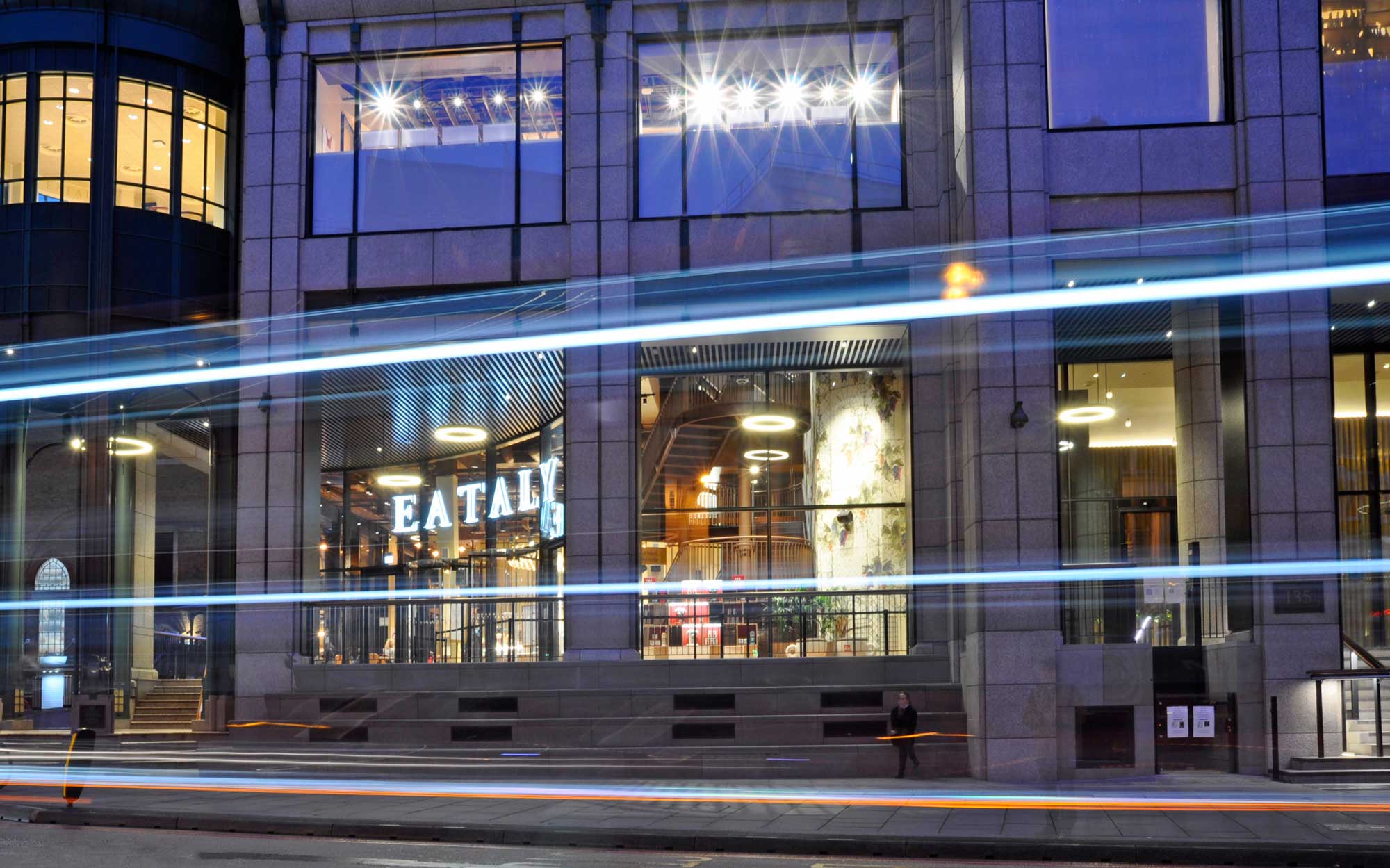

Eataly OAG 18
Eye catching

Blackened stainless-stell portal

Bespoke

Steel flush glazed system

Project Story Continued

We are proud to have worked on such an iconic building and are pleased to announce that we have also been awarded the redevelopment of 155 Bishopsgate.

“OAG were fantastic in supporting the project team.  The exemplary design and delivery of their works helped overcome a challenging programme and evolving project brief.  OAG were flexible in the installation of their works and met all quality expectations; the ideal CM Trade Contractor.”
George Axson, British Land

As with all our jobs, the quality assurance on this project was tightly monitored throughout.  We had skilled management on site and our own health & safety team carried audits every 2 weeks.  British Land carried out their own audits each month, reviewing the installed works and any works in progress.

We produced custom-made laser welded steel curtain wall sections to ensure that the seams were neat and barely noticeable, and that the contour of the steel shape would be maintained with minimal distortion and stress.

To create the specific blackened stainless-steel panels for the portal, we worked with Christian Pohl.  The whole team went to great lengths to achieve the desired finish and colour.

The process included applying the colour to the stainless-steel by means of electro-chemical reaction and then bead-blasting. Together this resulted in a deep, rich colour appearance and ensures superior durability.
