White Hart Lane Station

External ground floor façade and double-glazed curtain walling system with blast resilient screens

Project Story

A few moments away from Tottenham Hotspur Stadium, comes the new-look White Hart Lane Station, the new station entrances to the London Overground Station provides quicker and easier access for local commuters.

Our project scope entailed the design fabrication of the ground floor, including both internal and external work.

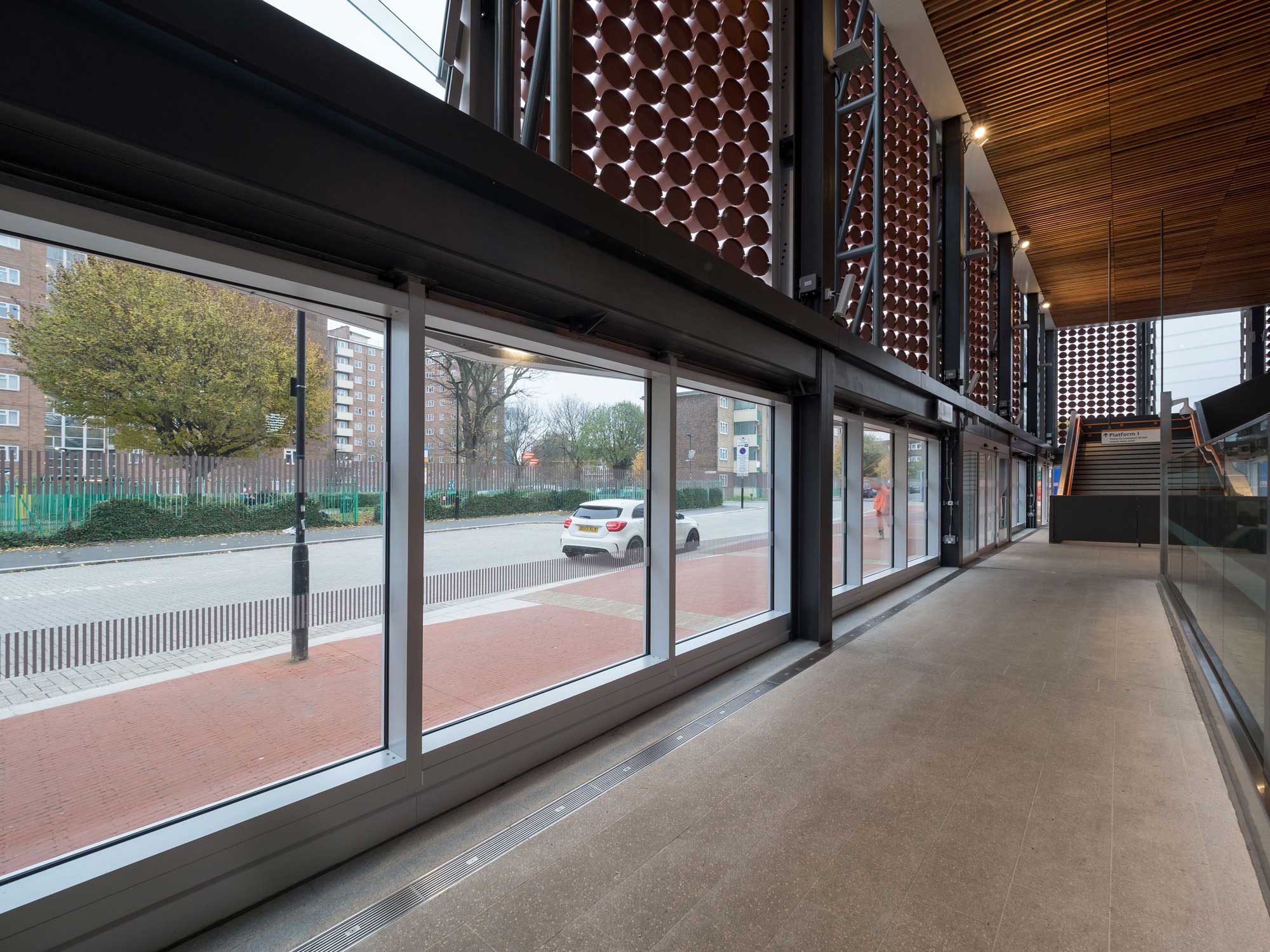

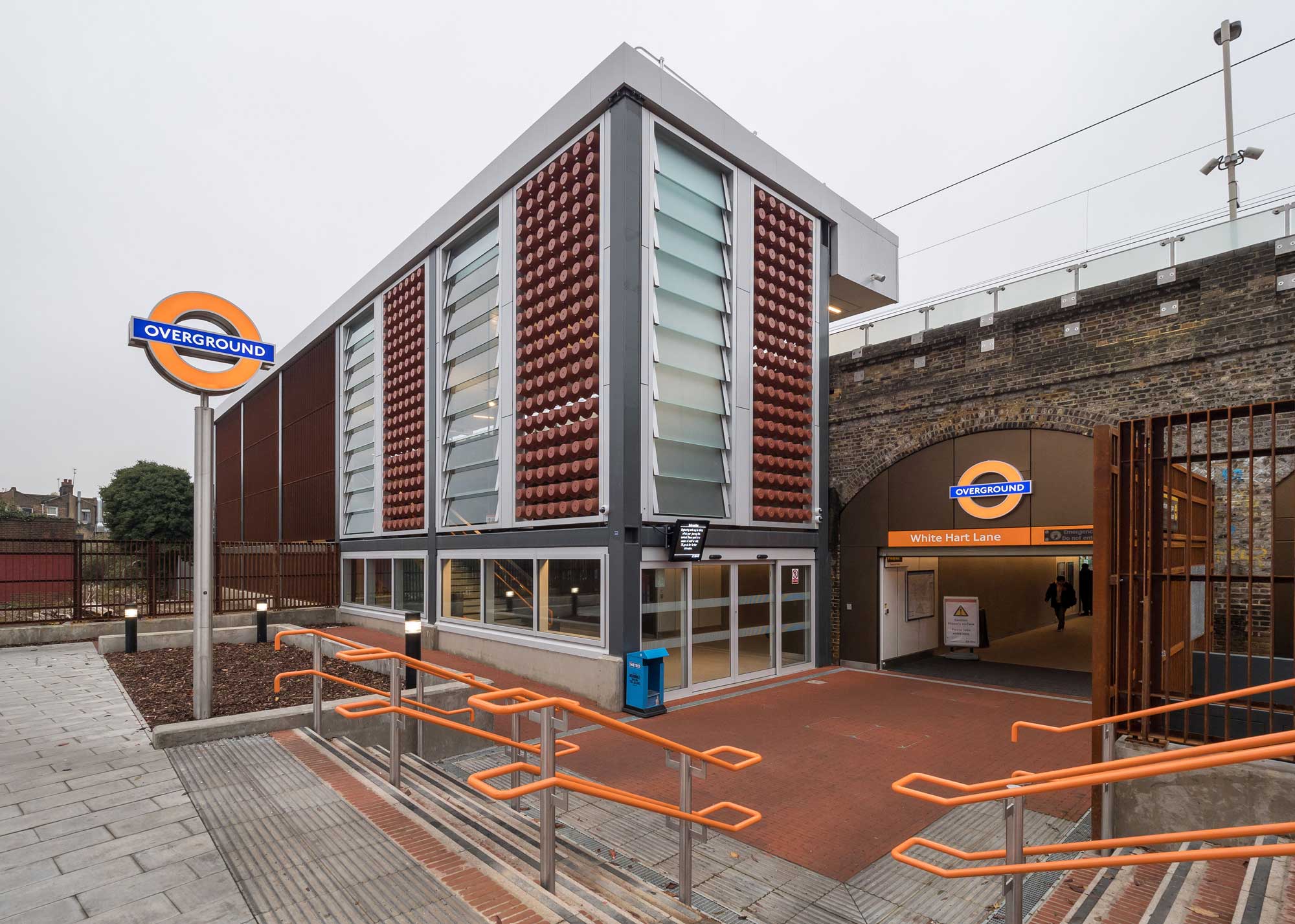

We installed an external ground floor façade and double-glazed curtain walling system with blast resilient screens to the unheated/naturally ventilated station, East Concourse Building. Using capped mullion/transom system, meeting blast loading and other performance requirements.

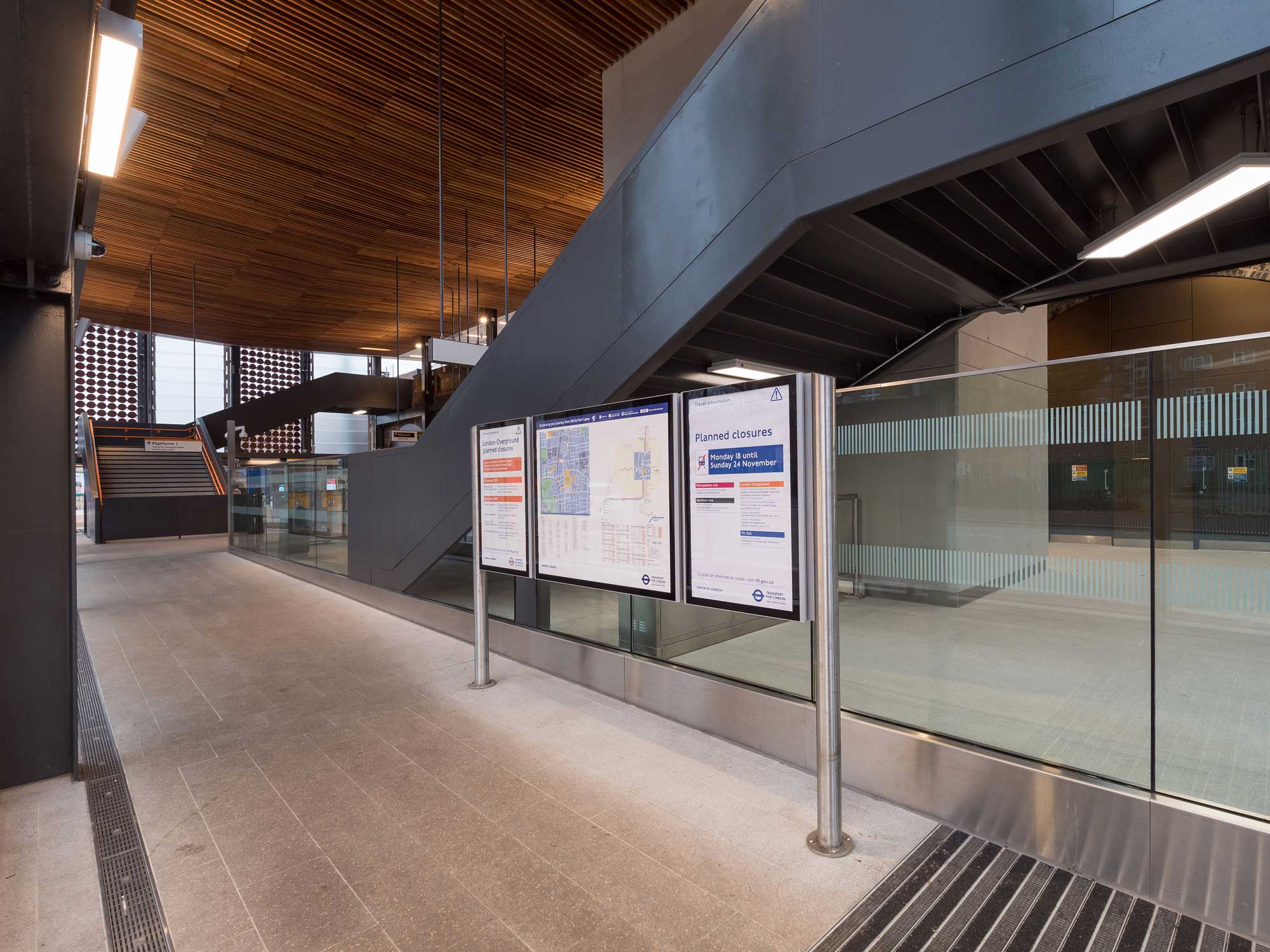

The internal work to the ground floor area consists of an 1800mm high stainless steel and glass balustrade, comprising of bespoke galvanised support system covered in stainless steel flashing with stainless steel architectural top channel.

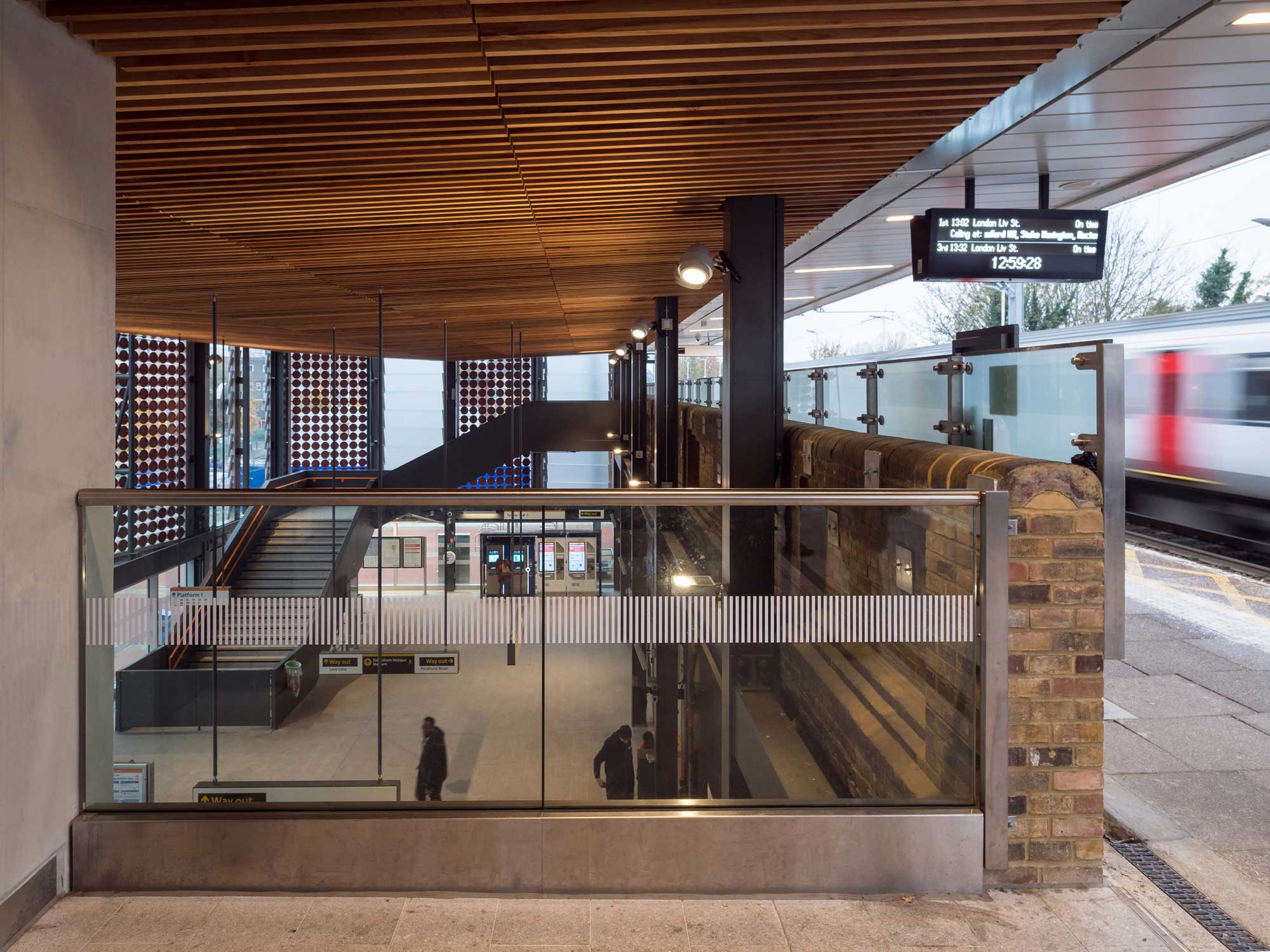

In addition to this a 1100mm high stainless steel and glass balustrade was installed to Level 1 Lift Landing within the station, comprising again of bespoke galvanised support system covered in stainless steel flashing with architectural stainless steel handrail.

Project Summary

White Hart Lane Station OAG 03
White Hart Lane Station OAG 04
White Hart Lane Station OAG 08
White Hart Lane Station OAG 09
White Hart Lane Station OAG 10
White Hart Lane Station OAG Architectural Glass Balustrades 05
White Hart Lane Station OAG Architectural Glass Balustrades 06
White Hart Lane Station OAG Architectural Glass Facades 02
White Hart Station OAG 07
1800mm

High stainless steel and glass balustrade

Bespoke

Galvanised support system

Project Story Continued

Lastly a bolted glass parapet topper screen was installed, comprising of stainless-steel box posts, 1800mm from platform level with diffused glass interlayers.

We thoroughly enjoyed working with Taylor Woodrow and TFL on this project and hope to work with them again in the future.
